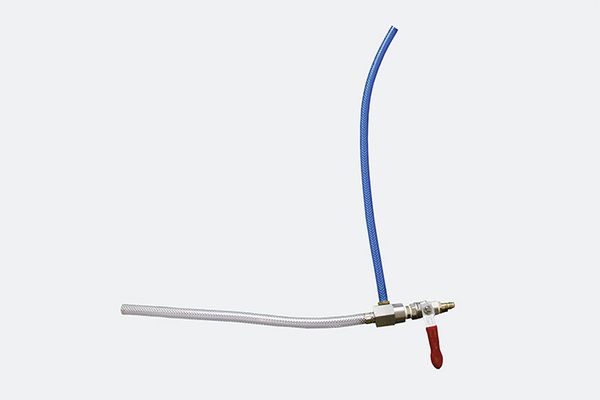

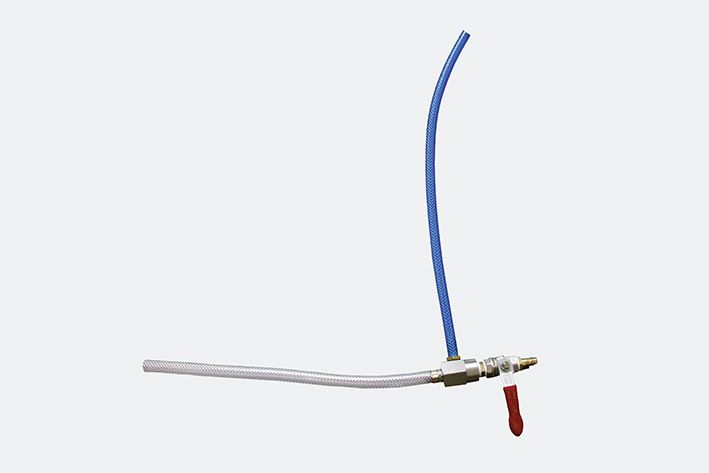

Vacuum generating device

for emptying injection hoses, LP ball valve G1/4", suction hose 0.5 m, drain hose approx. 0.35 m, compressed air connection, brass plug DN 7.2 mm
Advantage/Notice
  • Injection hoses are emptied easily and safely after injection
  • Also suitable for use with nail packers when using the adapter
  • The underpressure generated by the vacuum generating device empties the injection hose from surplus filling material. Thereby the filling hose is ready for further injection.
Technical data
Working pressure 0 - 8 bar
Max. low pressure 0,6 bar
Air consuption 200 l/min
Product description
The underpressure generated by the vacuum generating device empties the injection hose from surplus filling material (resin, cement, acrylate gel). With the adaptor, the vacuum generating device can also be used with nail packers.

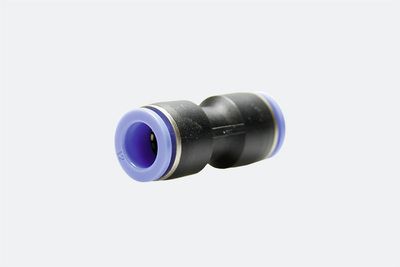

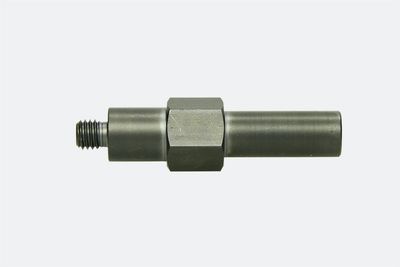

Accessories
